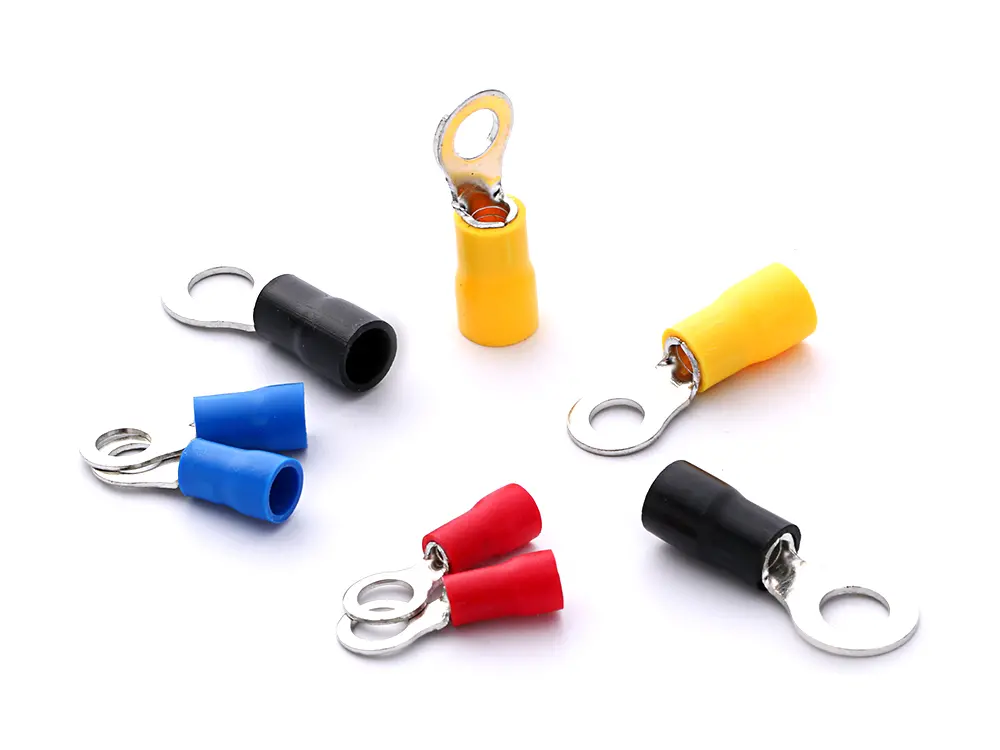

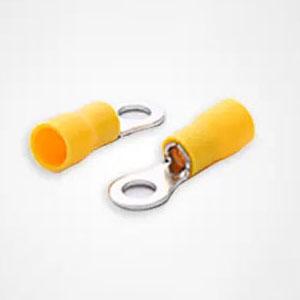

Features and advantages
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.
Offers a wide selection of rings, forks, pins and blades, designed to meet the ever changing end user requirements.
Product Data
Cross-section
0.75-1.5mm² (22~16 AWG)
Available range | Stud Size | Single Grip | Double Grip | American | Dimensions (mm) | |||
d2 | W | F | L | |||||
Cross-section: 0.75-1.5mm² A.W.G.: 22~16 Imax=19A Insulator colour: Red Surface handling: Tin / 3μ Annealing: Yes
H=10.0 D=4 d1=1.7 T=0.75 | M3 | RV1.25-3.2 | RVD1.25-3.2 | #4 | 3.2 | 5.5 | 5.00 | 17.5 |
M3.5 | RV1.25-3.7S | RVD1.25-3.7S | #6 | 3.7 | ||||
M3.5 | RV1.25-3.7M | RVD1.25-3.7M | #6 | 3.7 | 6.6 | 6.3 | 19.4 | |
M3.5 | RV1.25-3.7L | RVD1.25-3.7L | #6 | 3.7 | 8.0 | 7.0 | 20.8 | |
M4 | RV1.25-4S | RVD1.25-4S | #8 | 4.3 | 6.6 | 6.3 | 19.4 | |
M4 | RV1.25-4L | RVD1.25-4L | #8 | 4.3 | 8.0 | 7.0 | 20.8 | |
M5 | RV1.25-5 | RVD1.25-5 | #10 | 5.3 | ||||
M5 | RV1.25-5L | RVD1.25-5L | #10 | 5.3 | 11.6 | 11.0 | 26.8 | |
M6 | RV1.25-6 | RVD1.25-6 | 1/4" | 6.4 | 11.6 | 11.0 | 26.8 | |
M8 | RV1.25-8 | RVD1.25-8 | 5/16" | 8.4 | 11.6 | 11.0 | 27.0 | |
M8 | RV1.25-8L | RVD1.25-8L | 5/16" | 8.5 | 13.6 | 13.9 | 30.7 | |
M10 | RV1.25-10 | RVD1.25-10 | 3/8" | 10.5 | 13.6 | 13.9 | 30.5 | |
M12 | RV1.25-12 | RVD1.25-12 | 1/2" | 13.0 | 19.2 | 16 | 35.4 | |
