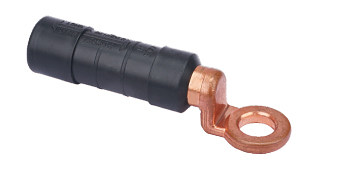

Type No.:MAG-CPTAU Pre-insulated Crimping Bimetal Lugs
| The pre-insulated lugs are suitable for insulated stranded aluminum or copper conductors. Stripped cables are inserted up to the end, Crimping according to the marks with appropriate crimping die size over the insulation. The electrical contact and the sealing by the ring are achieved during the crimp process. A seal-joint makes tight the connection and allows connecting the copper or aluminum cables. The sealing ring color coded to easier identify the cross sections, inside aluminum sleeve filled with contact grease for a best electrical contact, Insulation material made of weather resistant polymer. | |
| |
| |
| |
