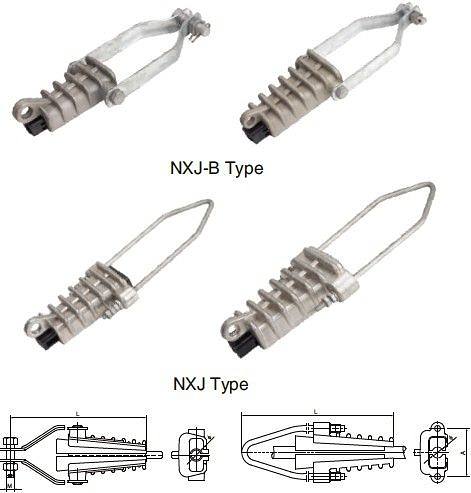

| Tension clamps for insulating conductor |
| Application NXJ aerial insulation wedge type tension clamp is a kind of anchor clamp in distribution line. It is applicable for fastening of aerial insulated conductor on the corner or terminal wire pole. The product is equipped with 1kv 10kv 20kv plastic inner wedge separately according to the voltage standard. The product body is cast with high strength aluminum alloy and has the advantages such as high strength, good holding power, light in weight, no magnetic hysteresis loss and easy of installation. Structure Feature 1.The shell made of anti-oxidation high strength aluminum alloy, without waste power. 2.The core of wedge made of insulating reinforce plastics, 1-10kv withstand voltage: ≥18kv, not breakdown one min. 3.Not need to remove the insulation layer; al-core wire can be used directly. 4.Without waste power 5.Wedge structure, easy to install. | |
| |
