Features and advantages

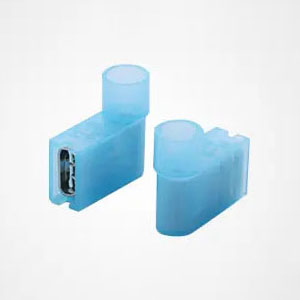

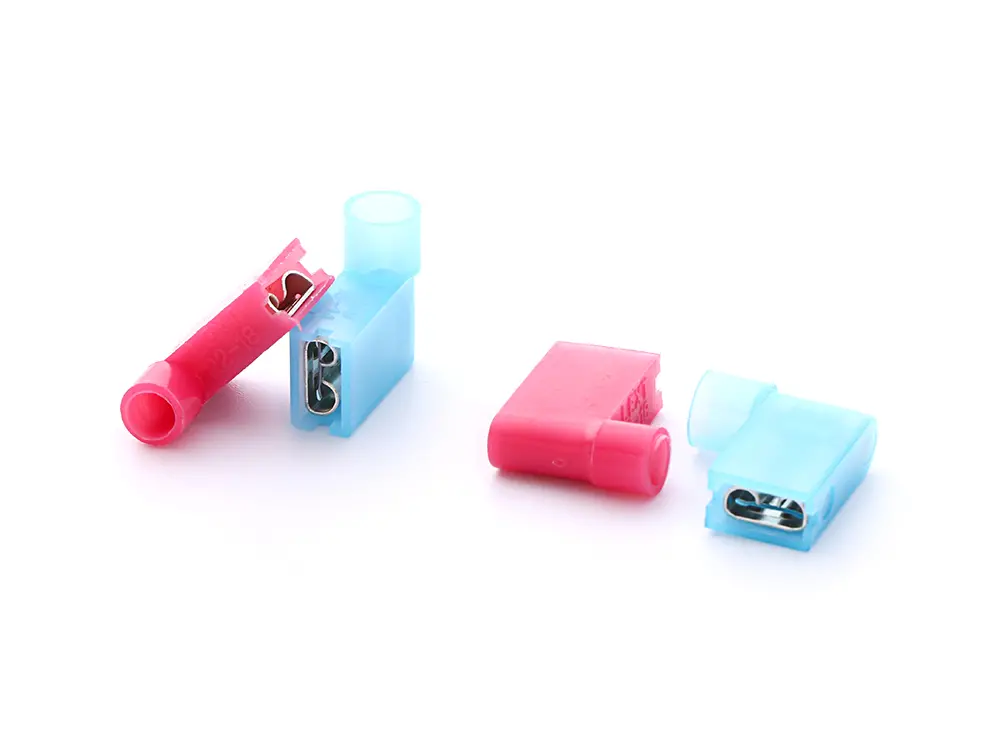

Self-Stripping Female Quick-Slide connector.
Capable of connecting to an insulated, solid or stranded.
Without cutting or stripping the wire.
Separable and reusable.
Forming a Quick Connect Wiring Termination.
he electrical connecting element shall be tin plated.
Brass connector, the insulator body shall be molded nylon, color coded to run.
Product Data
Quick disconnector flag type

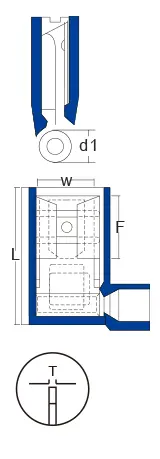

ITEM NO. | Tab Size | DIMENSIONS | COLOR | ||||
W | F | L | d1 | T | |||
FLDNY1.25-187(5) | 0.5×4.8 | 5.8 | 7.0 | 15.0 | 1.6 | 0.35 | Red |
FLDNY1.25-187(8) | 0.8×4.8 | ||||||
FLDNY1.25-250 | 0.8×6.35 | 6.6 | 8.5 | 16.0 | 1.7 | 0.45 | |
FLDNY2-187(5) | 0.5×4.8 | 5.8 | 7.0 | 15.2 | 2.1 | 0.35 | Blue |
FLDNY2-187(8) | 0.8×4.8 | ||||||
FLDNY2-250 | 0.8×6.35 | 6.6 | 8.5 | 16.0 | 2.3 | 0.45 | |
FLDNYD5.5-250 | 0.8×6.35 | 6.6 | 7.6 | 16.5 | 3.4 | 0.45 | Yellow |
