Description

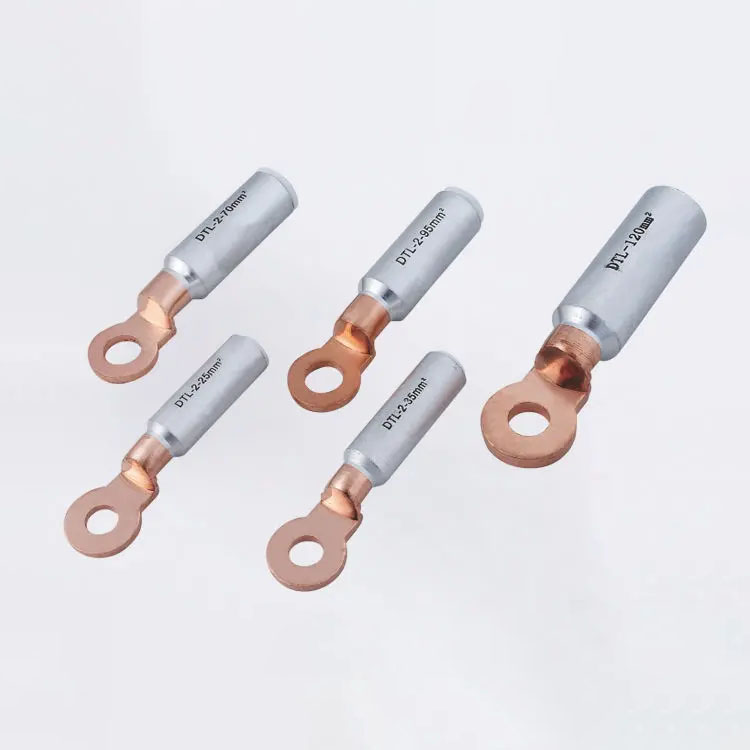

The lug is made of aluminium barrel link to a copper palm by
friction welding technology. For external application,
the alu-cu area should be protected against humidity.
To be crimped by deep stepped indentation.
Features and benefits

Application
Bimetallic lugs for aluminium conductors.
MV terminations.
LV connection on busbar inside electrical panel.

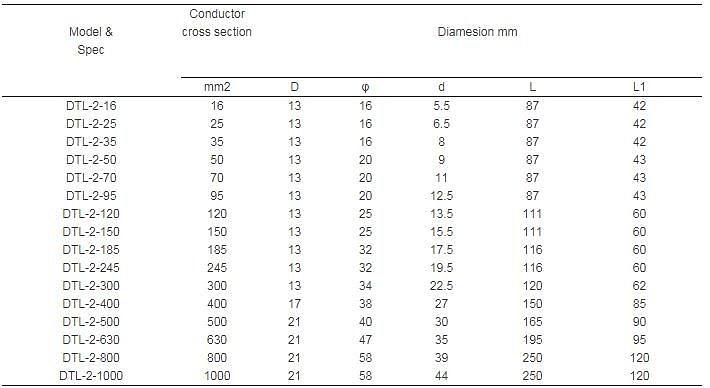

lRange from 16 to 1000 mm2. One technology for all the sizes
of cables.
lFriction welding technology. Age resistant current passage from
the aluminum shift to the solid copper plate.
lCrimped deep step indentation. High quality connections
independent installer’s skills.
lSingle connector model for a given conductor cross-sectional
area (independent of the core compression ratio).
lAluminum barrel and solid copper palm. Best technical solution
to connect aluminium conductor to a copper bar.
