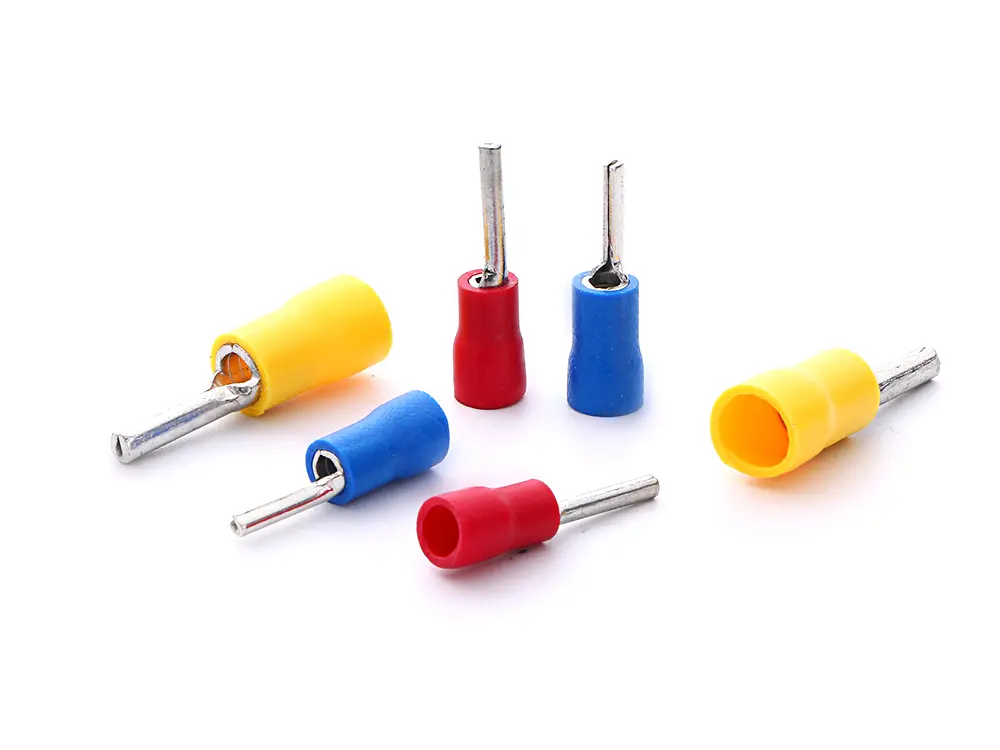

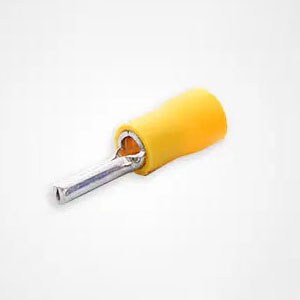

Features and advantages
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.
Offers a wide selection of rings, forks, pins and blades, designed to meet the ever changing end user requirements.
Product Data
Cross-section:
0.75-1.5mm² (22~16 AWG)
Available range | Single Grip | Double Grip | Dimensions(mm) | ||
W | F | L | |||
Cross-section: 0.75-1.5mm² A.W.G.: 22~16 Imax=19A Insulator colour: Red Surface handling: Tin / 3μ Annealing: Yes | PTV1.25-9 | PTVD1.25-9 |
1.9 | 9.0 | 18.8 |
PTV1.25-10 | PTVD1.25-10 | 10.0 | 19.8 | ||
PTV1.25-12 | PTVD1.25-12 | 12.0 | 21.8 | ||
PTV1.25-13 | PTVD1.25-13 | 13.0 | 22.8 | ||
PTV1.25-14 | PTVD1.25-14 | 14.0 | 23.8 | ||
PTV1.25-18 | PTVD1.25-18 | 18.0 | 27.8 | ||
