Features and advantages
Self-Stripping Female Quick-Slide connector.
Capable of connecting to an insulated, solid or stranded.
Without cutting or stripping the wire.
Separable and reusable.
Forming a Quick Connect Wiring Termination.
The electrical connecting element shall be tin plated.
Brass connector, the insulator body shall be molded nylon, color coded to run.
Product Data

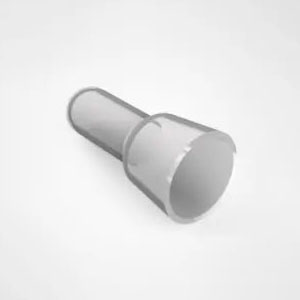

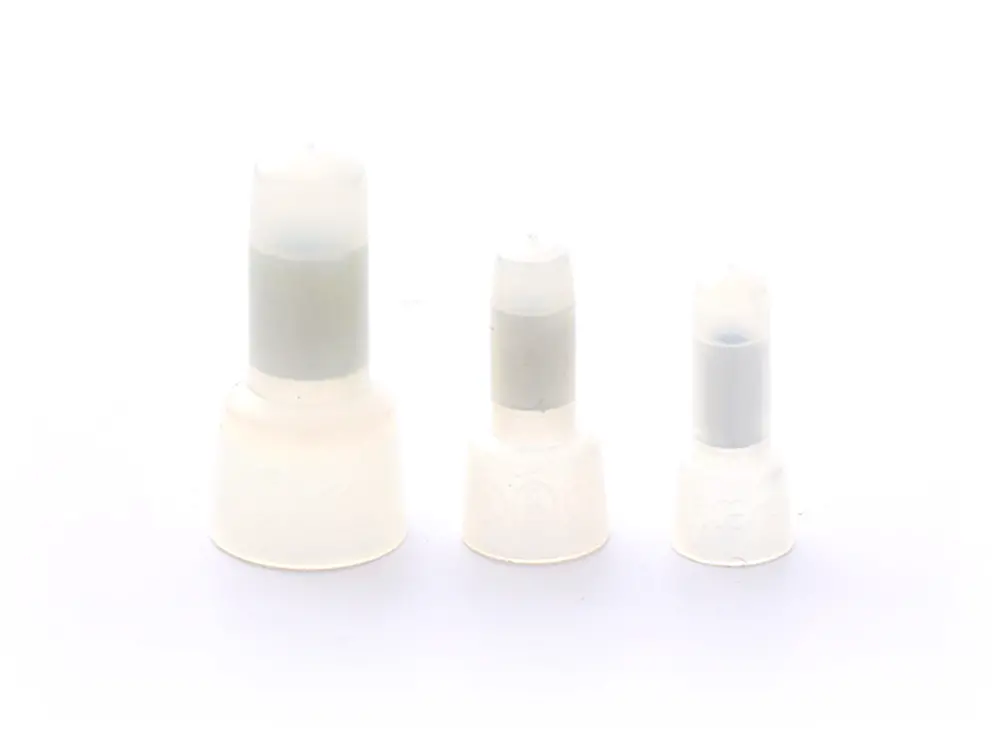

Nylon Closed End Connector
Case diagram | Cross Section | Item No. | Max. Electric Rating(AMP) | Dimensions [ inch.(mm) | Color | |||
B | L | F | D | |||||
300 Volts - Max Temp 75˚C | 22-16 AWG/1.25mm² | CE 1 | 19.0 | .197 (5.0) | .709 (18.0) | .315 (8.0) | .256 (6.5) | Nature |
16-14 AWG/2mm² | CE 2 | 27.0 | .217 (5.5) | .827 (21.0) | .354 (9.0) | .315 (8.0) | Nature | |
12-10 AWG/5.5mm² | CE5 | 48.0 | .276 (7.0) | .985 (25.0) | .394 (10.0) | .413 (10.5) | Nature | |
