Features and advantages
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.
Offers a wide selection of rings, forks, pins and blades, designed to meet the ever changing end user requirements.
Product Data

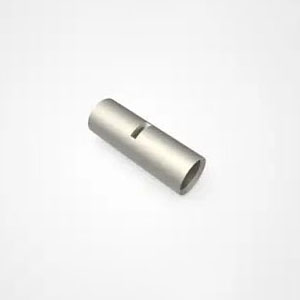

Non-insulated Butt and Parallel connectors
Conductor Range | Item No. | Dimensions (mm) | A.W.G | |||
L | L1 | D | d1 | |||
0.2-0.5 mm² | BN 0.5 | 2.1 | 1.3 | 12.0 | 0.4 | 26-22 |
0.5-1.5 mm² | BN 1.25 | 3.3 | 1.7 | 15.0 | 0.8 | 22-16 |
1.5-2.5 mm² | BN 2 | 3.9 | 2.3 | 15.0 | 0.8 | 16-14 |
2.5-4 mm² | BN 3.5 | 5.0 | 3.0 | 15.0 | 1.0 | 14-12 |
4-6 mm² | BN 5.5 | 5.4 | 3.4 | 15.0 | 1.0 | 12-10 |
8 mm² | BN 8 | 7.0 | 4.6 | 21.0 | 1.2 | 8.0 |
14 mm² | BN 14 | 8.9 | 5.9 | 26.0 | 1.5 | 6.0 |
22 mm² | BN 22 | 11.3 | 7.8 | 29.0 | 1.8 | 4.0 |
38 mm² | BN 38 | 13.2 | 9.5 | 32.0 | 1.9 | 2.0 |
60 mm² | BN 60 | 15.3 | 11.4 | 36.0 | 2.0 | 1/0 |
70 mm² | BN 70 | 17.5 | 13.3 | 37.0 | 2.1 | 2/0 |
80 mm² | BN 80 | 19.5 | 14.5 | 38.0 | 2.5 | 3/0 |
100 mm² | BN 100 | 22.1 | 16.4 | 38.0 | 2.9 | 4/0 |
150 mm² | BN 150 | 26.4 | 19.5 | 54.0 | 3.5 | 250/300 |
180 mm² | BN180 | 28.5 | 21.0 | 57.0 | 3.8 | 300/350 |
200 mm² | BN200 | 32.4 | 24.0 | 63.0 | 4.2 | 400/500 |
325 mm² | BN325 | 37.0 | 28.0 | 72.0 | 4.5 | 500/600 |
