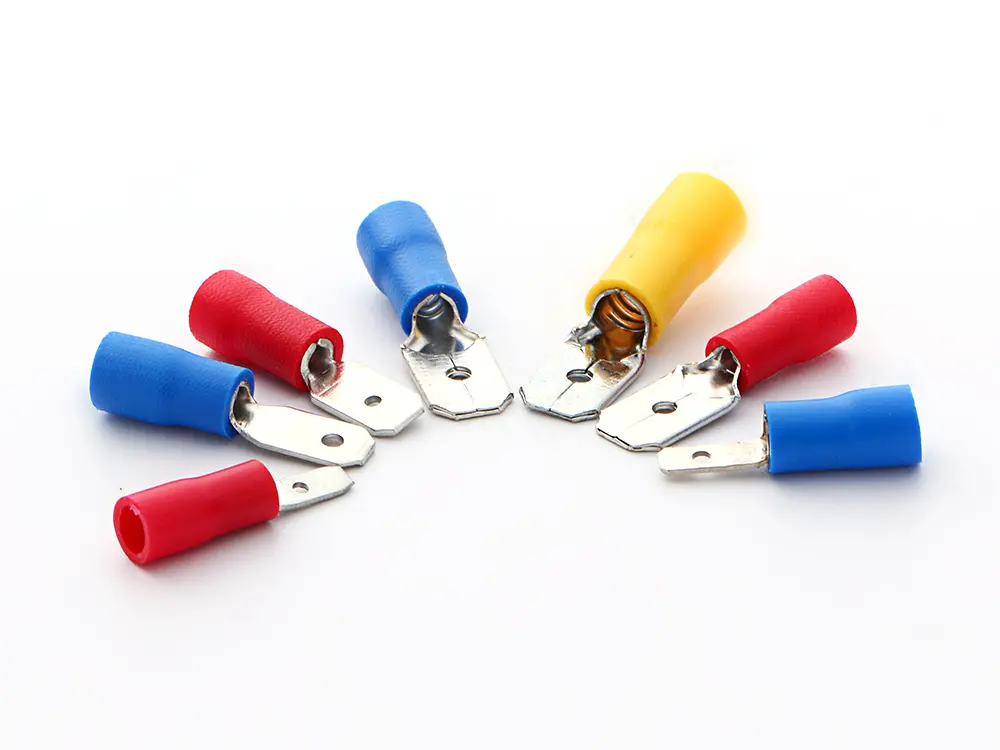

Features and advantages
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.
Offers a wide selection of rings, forks, pins and blades, designed to meet the ever changing end user requirements.
Product Data
Cross-section:
0.75-1.5mm² (22~16 AWG)
| Available range | Single Grip | Double Grip | Tab Size | Dimensions(mm) | ||
| W | L | T | ||||

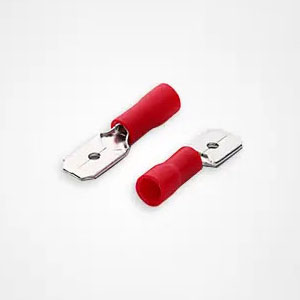

Cross-section: 0.75-1.5mm² A.W.G.: 22~16 Imax=10A Surface handling: Tin / 3μ Insulator colour: Red
H=10.0 d1=1.7 D=4
| MDD1.25-110(5) | MDG1.25-110(5) | 2.8X0.5 | 2.8 | 18.5 | 0.5 |
| MDD1.25-110(8) | MDG1.25-110(8) | 2.8X0.8 | 0.4 | |||
| MDD1.25-187(5) | MDG1.25-187(5) | 4.8X0.5 | 4.8 | 19.0 | 0.5 | |
| MDD1.25-187(8) | MDG1.25-187(8) | 4.8X0.8 | 0.4 | |||
| MDD1.25-250 | MDG1.25-250 | 6.35X0.8 | 6.35 | 6.35 | ||
