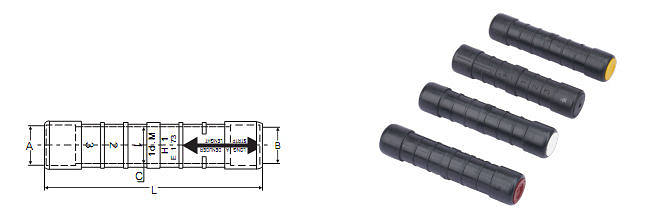

Type No.:MAG-MJPT Pre-insulated Junction Sleeves
| These pre-insulated aluminium sleeves are suitable for insulated aluminum conductors. Stripped cables are inser ted up to the block in the connector. Crimping according to the marks with appropriate crimping die over the insulation. The electrical contact and the seal ing by the r ing is achieved dur ing the cr imp process. Uni form connector length was about 100mm. Suitable for aluminum conductors, the seal ing ring color coded to easier identify the cross sections, Inner aluminum sleeve filled with contact grease, Insulation material made of weather resistant polymer. The aluminum sleeve made of aluminum alloy. |
|
|
