Type No.:MAG-MJPTN Pre-insulated Junction Sleeves For Neutral Messenger

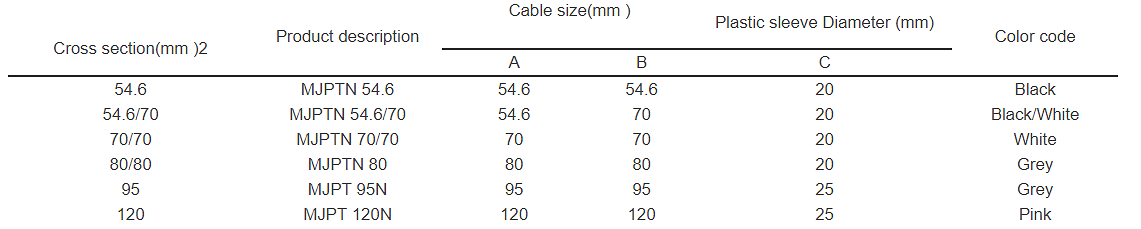

| These pre-insulated aluminium sleeves are suitable for insulated aluminum conductors. Stripped cables are inser ted up to the block in the connector. Crimping according to the marks with appropriate crimping die over the insulation. The electrical contact and the seal ing by the ring are achieved during the crimp process. And this sleeve was suitable for sel f-suppor ting systems with a neutral messenger, the sealing ring color coded to easier identify the cross sections, inner aluminum sleeve filled with contact grease, Insulation material made of weather resistant polymer. The aluminum sleeve made of aluminum al loy. The connector length was about 173mm and the MJPT 95N&MJPT 120N was about 135mm length. |
| |
