Full Tension Midspan Joints, are manufactured from an
Aluminum extrusion, equivalent in strength
to the conductor onto which the fitting is applied.
Each fitting is manufactured with tapers,
to eliminate stresses associated with compression,
and reduce corona discharge.
Material:
Splice Body: Aluminum Alloy

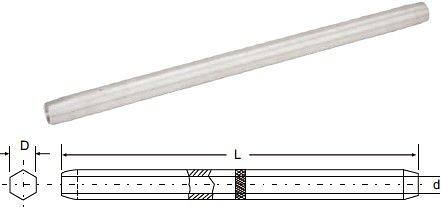

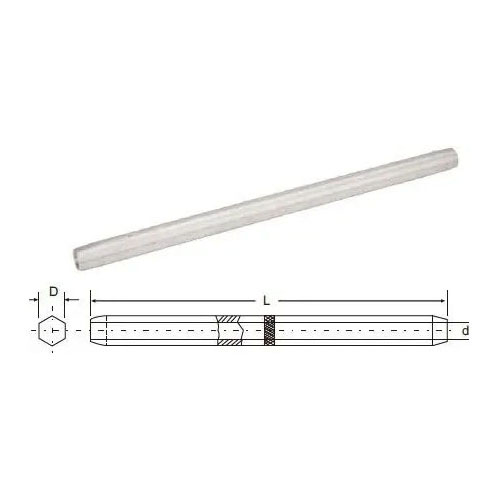

| Catalog Number | Conductor | Dimensions (mm) | Holding power (kN) | ||||
| Type | O.D mm | D | F | d | L | ||
| JY-150L JY-185L JY-210L JY-240L JY-300L JY-400L JY-500L JY-630L JY-800L | LJ-150 LJ-185 LJ-210 LJ-240 LJ-300 LJ-400 LJ-500 LJ-630 LJ-800 | 15.75 17.50 18.75 20.00 22.40 25.90 29.12 32.67 36.90 | 30 32 34 36 40 45 52 60 65 | 20 20 20 20 25 25 30 35 40 | 17.0 19.0 20.0 21.5 24.0 27.5 30.5 34.0 38.5 | 280 310 330 350 390 450 510 570 650 | 22 27 31 34 45 58 73 87 110 |
