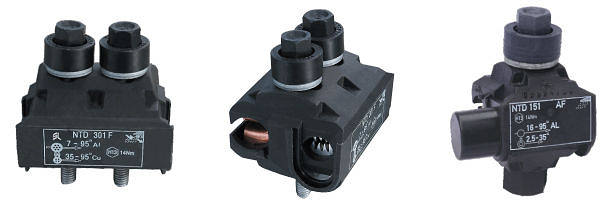

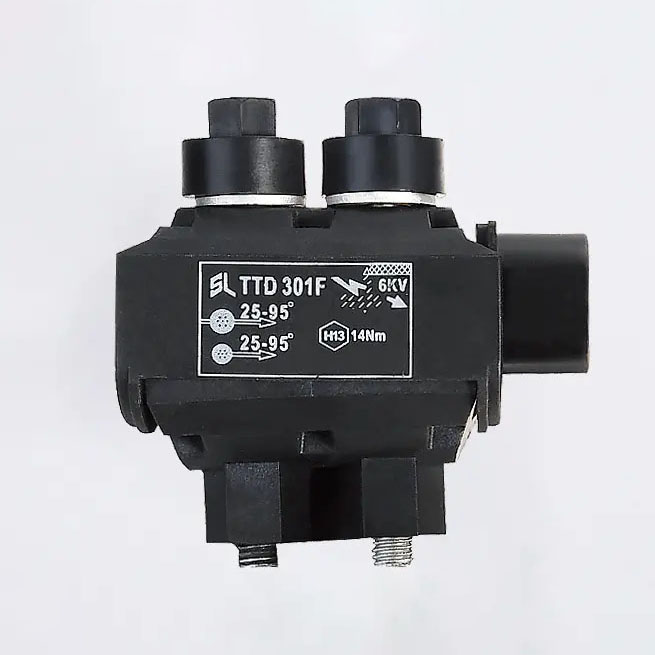

Type No.:MAG-Insulation Piercing Connectors NTD
| This type connector was use to tap an insulated conductor from a low voltage aerial bare overhead line. And it use for contact live or dead line work. The main line was for overhead bare Copper or Aluminum conductor , and the tap line was insulated Copper or Aluminum conductor . The connector body is made of high mechanical and weather resistant insulating material, tight bolts is processed by anti-corrosion treated and equipped with tight torque nut so that it can be installed simply, safety and fast. The stable piercing pressure can assure the cable connection up to a perfect effecting. The main line and tape line tight separately, the complete connector do not exist any loosen parts. The branch can be on the left or on the right. The insulation piercing contact teeth on tap side with neutral grease and according to models made of: copper alloy (F model), tinned copper alloy (EF model), alum alloy (AF model). |
|
|
