Features and advantages

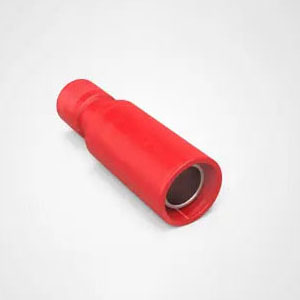

Self-Stripping Female Quick-Slide connector.
Capable of connecting to an insulated, solid or stranded.
Without cutting or stripping the wire.
Separable and reusable.
Forming a Quick Connect Wiring Termination.
The electrical connecting element shall be tin plated.
Brass connector, the insulator body shall be molded nylon, color coded to run.
Product Data
Cross-section:
0.75-1.5mm² (22~16 AWG)
| Available range | Single Grip | Double Grip | Dimensions(mm) | ||||||
| W | W1 | L | H | d1 | D | T | |||
Cross-section: 0.75-1.5mm² A.W.G.: 22~16 Imax=10A Surface handling: Tin / 3μ Insulator colour: Red Insulator: PVC / PA66
| FRD1.25-156 | FRDD1.25-156 | 3.9 | 7.0 | 23.0 | 1.7 | 3.8 | 4.0 | 0.4 |
