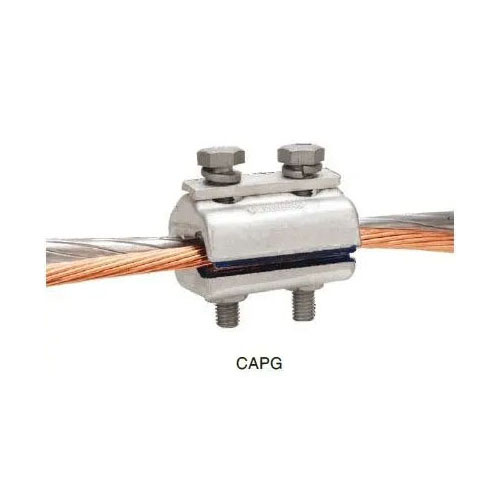

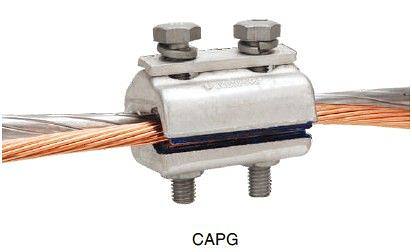

| The aluminium clamp with a friction welded copper insert clearly marked in blue for making copper conductor connections. The clamps have serrated transverse grooves for maximum conductor contact, use dacromet steel bolts and utilise belleville washers to prevent thermal ratcheting under cyclic loads. Interface between aluminium clamp body and tap copper shape is protected.The clamps are coated with an oxide inhibitor. And hot-dip galvinized steel bolts and nuts was on requirment, also we can change to stainless bolts and nuts with washers. Material: Body：High strength corrosion resistant aluminium and copper-alloy Bolts: DIN 933, steel, 8.8, Dacromatized Nuts: DIN 934, steel, Dacromatized. pressed into lower clamp body Spring DIN 127, steel, Dacromatized washers: Dacromatized. |
|
| |
| |
| Options: F-X-G ·F(ex. CAPG16-70F): Shear head screw ·X(ex. CAPG16-70X...): Stainless steel screws. ·G(ex. CAPG16-70G.): Hot-dip galvanized steel screws. Note: 1. Type: F = Forged body; T = Transverse groove 2. that the clamp is provided with corrosionproof stainless steel screws and hot-dip galvanized steel screws instead of dacromet screws. add suffix “X” for stainless steel screw. Add suffix “G” for hot dip galvanized steel screws. |
|
