Features and advantages
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.
Offers a wide selection of rings, forks, pins and blades, designed to meet the ever changing end user requirements.
Product Data

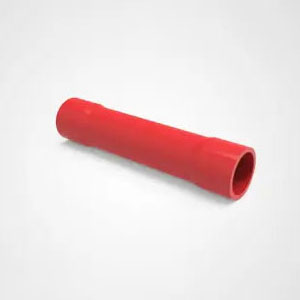

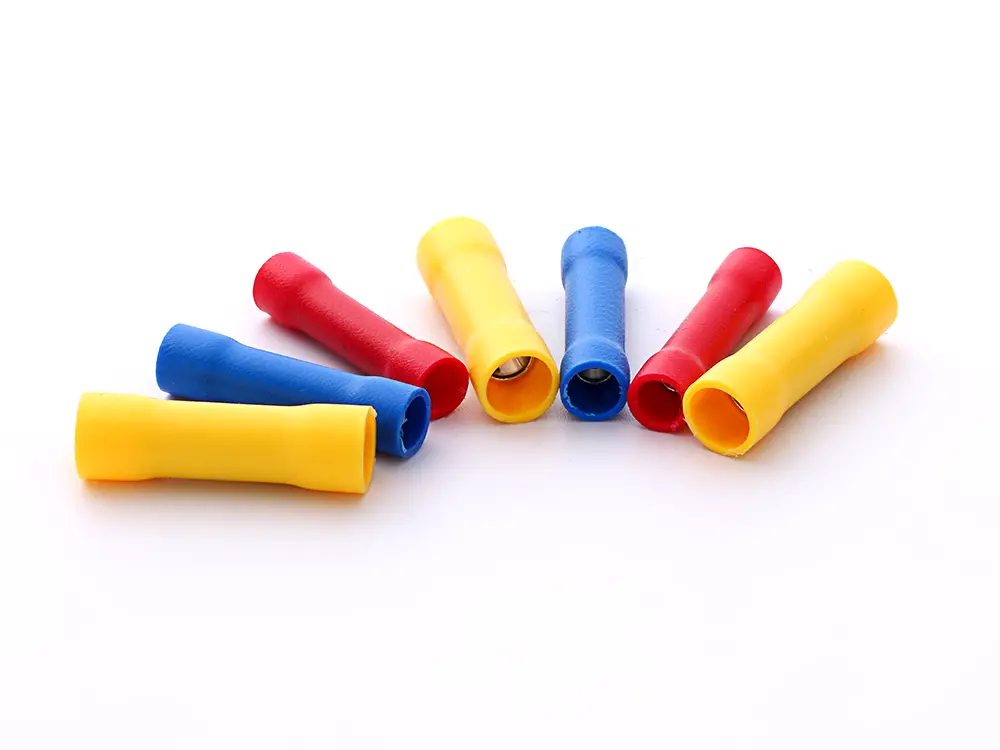

Butt and Parallel Connectors

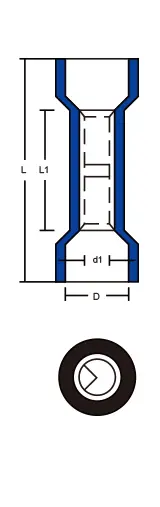

Case diagram | Conductor Range | Item No. | Dimensions (mm) | Max. Current | A.W.G | |||
L | L1 | D | d1 | |||||
| 0.5-1.5 mm² | BV 1.25 | 24.6 | 15.0 | 4.0 | 2.15 | 19A | 22-16 |
| 1.5-2.5 mm² | BV 2 | 24.6 | 15.0 | 4.5 | 2.75 | 27A | 16-14 |
| 4-6 mm² | BV 5.5 | 26.5 | 15.0 | 6.3 | 4.25 | 48A | 12-10 |
| 0.5-1.5 mm² | BNYF 1.25 | 25.2 | 15 | 4.0 | 2.15 | 19A | 22-16 |
| 1.5-2.5 mm² | BNYF 2 | 25.2 | 15 | 4.5 | 2.75 | 27A | 16-14 |
| 16-25 mm² | BNYF 5.5 | 28 | 15 | 6.3 | 4.25 | 48A | 12-10 |
