Features and advantages

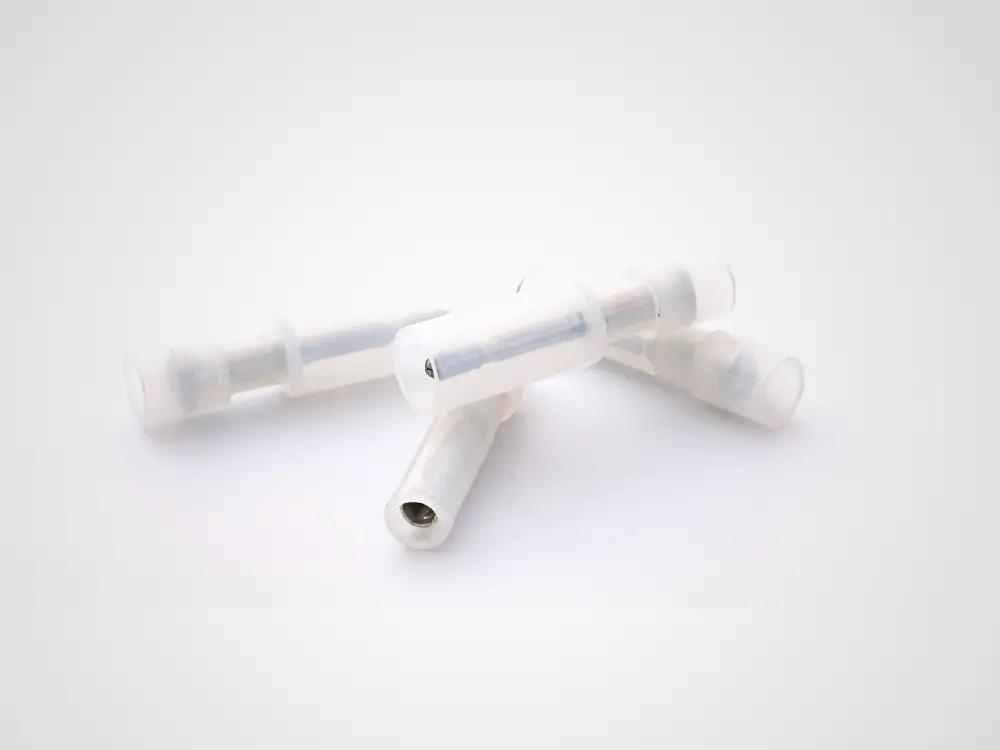

Self-Stripping Female Quick-Slide connector.
Capable of connecting to an insulated, solid or stranded.
Without cutting or stripping the wire.
Separable and reusable.
Forming a Quick Connect Wiring Termination.
The electrical connecting element shall be tin plated.
Brass connector, the insulator body shall be molded nylon, color coded to run.
Product Data

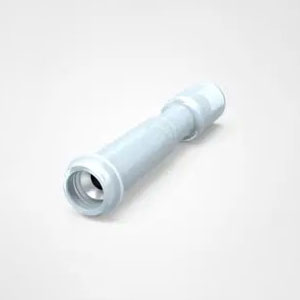

Bullet Female-Male quick disconnectors
| Case diagram | Wire Range | Dimension | |||||
W | L | H | d1 | D | T | ||
MPFNYE | 0.5-0.75mm² | 6.35 | 24.0 | 11.0 | 1.7 | 4.0 | 0.8 |
FRFNYD | 0.5-0.75mm² | 6.35 | 24.0 | 11.0 | 2.3 | 4.5 | 0.8 |
