Features and advantages
For wires from 0.14 – 150 mm²
Tolerances according to DIN 46228 part 4.
Wire end sleeves are available from cross section 0.26 to 150 mm²(AWG 26 – 300 MCM).
Wide range from insulated ferrules for standard applications to special end sleeves according customers requirements.
All wire end sleeves are of a high quality and could be processed by automatic machines. Insulated wire end sleeves are available in colour codes DIN, French and Germany.
Product Data

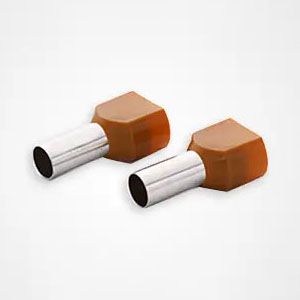

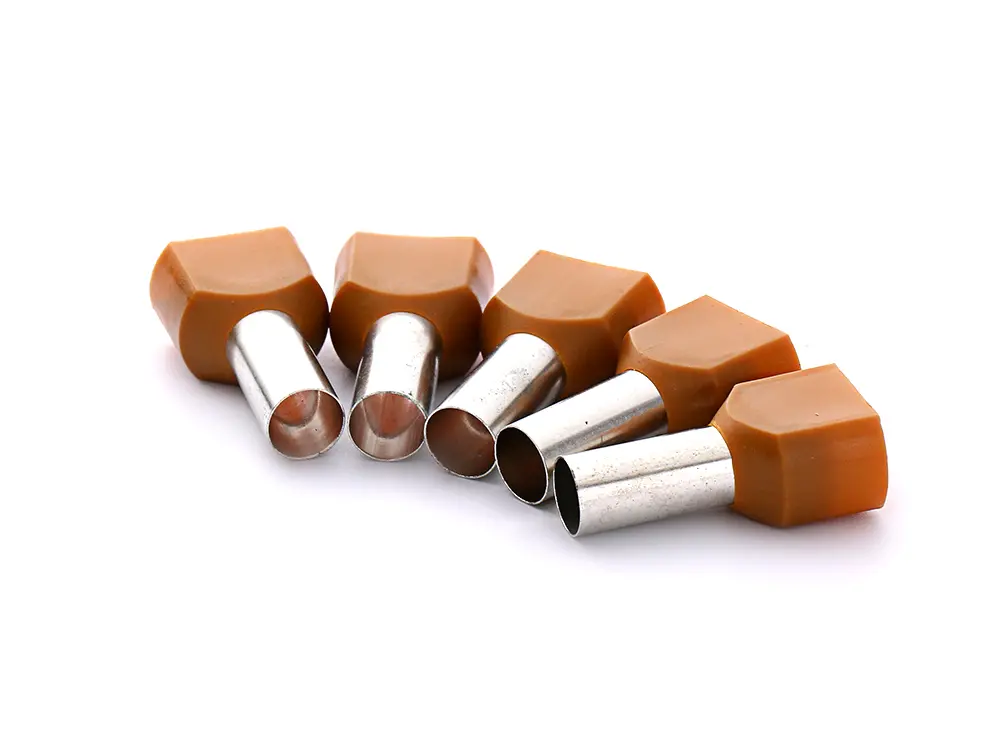

Twin Cord end Ferrules
Cross section (mm²) | Item No. | Dimensions (mm) | French color | German color | DIN color | |||||||

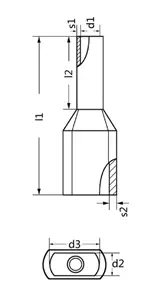

l1 | l2 | s1 | s2 | d1 | d2 | d3 | A.W.G | |||||
2×0.5mm² | TE0508 | 15 | 8 | 0.15 | 0.3 | 1.5 | 2.8 | 4.9 | 2×#22 | White |
Orange |
White |
TE0510 | 17 | 10 | ||||||||||
TE0512 | 19 | 12 | ||||||||||
2×0.75mm² | TE7508 | 15 | 8 | 0.15 | 0.3 | 1.8 | 2.9 | 5.2 | 2×#20 |
Blue |
White |
Grey |
TE7510 | 17 | 10 | ||||||||||
TE7512 | 19 | 12 | ||||||||||
2×1.0mm² | TE1008 | 16 | 8 | 0.15 | 0.3 | 2 | 3.5 | 5.7 | 2×#18 |
Red |
Yellow |
Red |
TE1010 | 18 | 10 | ||||||||||
TE1012 | 20 | 12 | ||||||||||
2×1.5mm² | TE1508 | 15.5 | 8 | 0.15 | 0.4 | 2.3 | 3.9 | 6.5 | 2×#16 |
Black |
Red |
Black |
TE1510 | 17.5 | 10 | ||||||||||
TE1512 | 19.5 | 12 | ||||||||||
TE1518 | 25.5 | 18 | ||||||||||
2×2.5mm² | TE2510 | 18 | 10 | 0.2 | 0.4 | 2..9 | 4.6 | 8 | 2×#14 |
Grey |
Blue |
Blue |
TE2512 | 20 | 12 | ||||||||||
TE2518 | 26 | 08 | ||||||||||
2×4mm² | TE4012 | 23 | 12 | 0.2 | 0.5 | 3.8 | 4.9 | 8.8 | 2×#12 |
Orange |
Grey |
Grey |
TE4018 | 29 | 18 | ||||||||||
2×6mm² | TE6014 | 26 | 14 | 0.2 | 0.5 | 4.9 | 6.3 | 9.3 | 2×#10 |
Green |
Black |
Yellow |
TE6018 | 30 | 18 | ||||||||||
2×10mm² | TE10-14 | 26.5 | 14 | 0.2 | 0.5 | 6.5 | 7.9 | 12.8 | 2×#8 |
Brown |
Ivory |
Red |
2×16mm² | TE16-14 | 32 | 14 | 0.2 | 0.6 | 8.3 | 11.6 | 19.3 | 2×#6 |
White |
Green |
Blue |
