SLCC Isolated Adapter For Short-circuits And Grounding

SLCC Isolated Adapter For Short-circuits And Grounding

Overview:
if need any qualification or test report,please email to sales@graceeraelectric.com
Inquire Now

SLCC Isolated Adapter For Short-circuits And Grounding

Inquire Now
Description

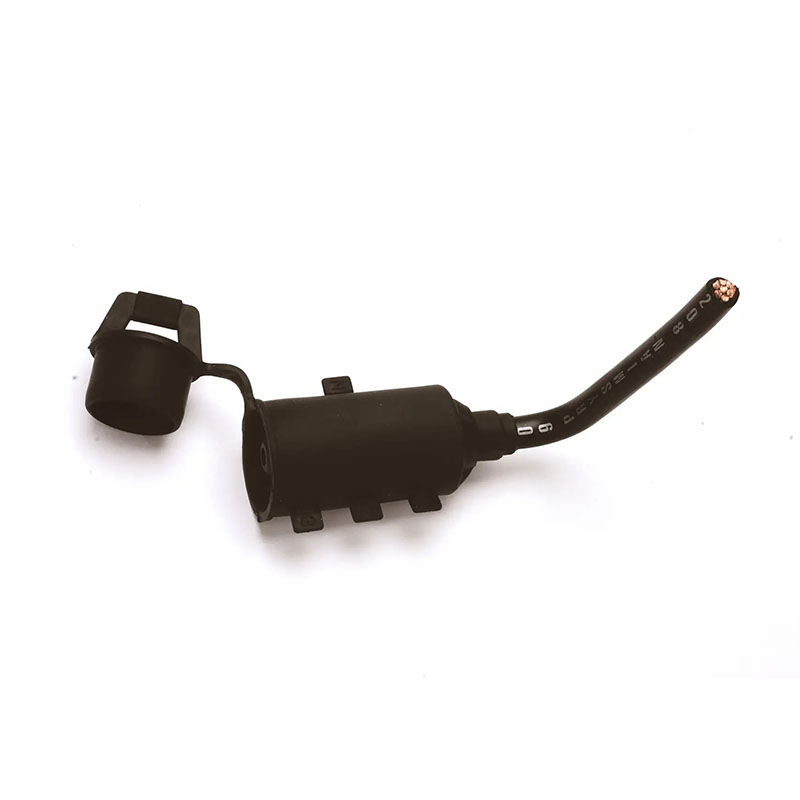

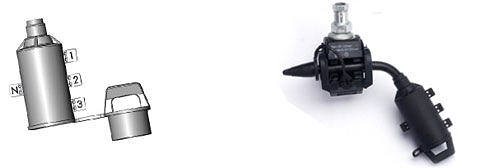

Adapter is installed from the branch to the terminals with insulation piercing (such as
           HELor KZ2,p,4,5)is usually at the site of termination or crossing the line.
           To accessthe bronze plug-in contact with the insulating cap lock is removed ,Plug-in
           contact has an opening to check for voltage.Accession to the grounding system is
           performed using a special set.
           Apply to any clip with insulation piercing technology for branch 25mm2 (diameter of the
           insulated conductor 9mm)
           Designed for short circuit currents 4KA/is and operating current to 200A
           Easy identification of phases with breaks off glags
           Tested for leaks of 6KV for 30min.underwater
           Complies with standard NFC33020
           No pull-down cormponents,the cap is attached to the body
           Insulation material made of weather and UV resistant polymer

Contact parts are made of bronze ,the diameter of 11.1 mm,length 35mm,
           4 mm hole isolated
