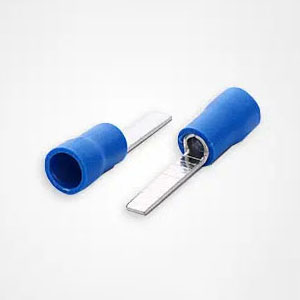

Features and advantages
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.

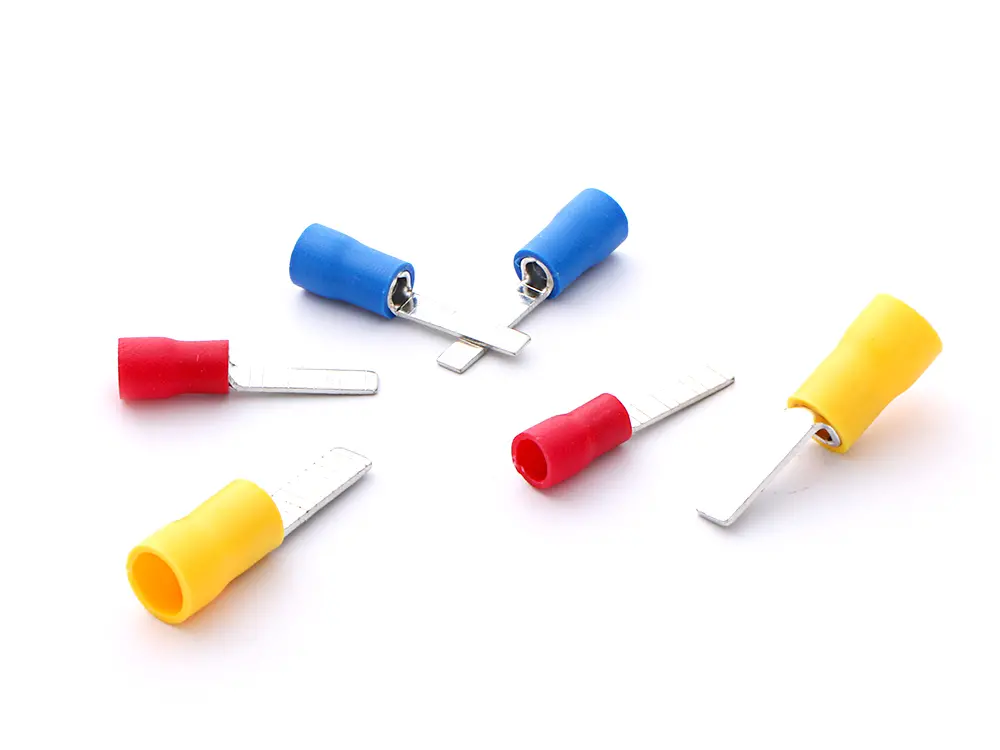

Offers a wide selection of rings, forks, pins and blades, designed to meet the ever changing end user requirements.
Product Data
Cross-section:
0.75-1.5mm² (22~16 AWG)
| Available range | Single Grip | Double Grip | Dimensions(mm) | ||
| W | F | L | |||
Cross-section: 0.75-1.5mm² A.W.G.: 22~16 Imax=19A Insulator colour: Red Surface handling: Tin / 3μ Annealing: Yes
H=10.0 d1=1.7 D=4 T=0.75
| DBV1.25-9 | DBVD1.25-9 | 2.8 | 9.0 | 18.8 |
| DBV1.25-10 | DBVD1.25-10 | 2.8 | 10.0 | 19.8 | |
| DBV1.25-11 | DBVD1.25-11 | 3.0 | 11.0 | 20.8 | |
| DBV1.25-13 | DBVD1.25-13 | 3.0 | 13.0 | 22.8 | |
| DBV1.25-14 | DBVD1.25-14 | 3.0 | 14.0 | 23.8 | |
| DBV1.25-18 | DBVD1.25-18 | 3.0 | 18.0 | 27.8 | |
