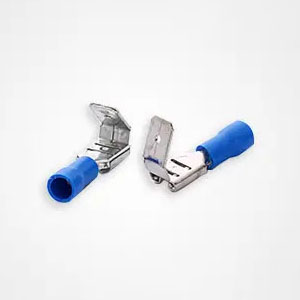

Features and advantages
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.
The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.
Offers a wide selection of rings, forks, pins and blades, designed to meet the ever changing end user requirements.
Product Data
Cross-section:
0.75-1.5mm² (22~16 AWG)
Available range |
Single Grip |
Double Grip |

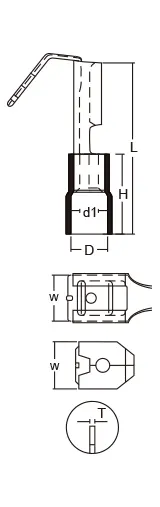

Tab Size | Dimensions(mm) | ||
| W | L | T | ||||
Cross-section: 0.75-1.5mm² A.W.G.: 22~16 Imax=10A Surface handling: Tin / 3μ Insulator colour: Red
H=10.0 d1=1.7 D=4 T=0.4
| PBDD 1.25-250 | PBDG 1.25-250 | 6.35X0.8 | 6.6 | 6.35 | 22.0 |
