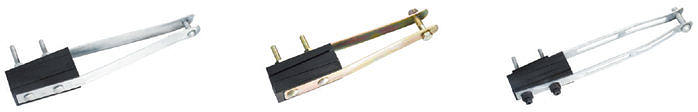

| The clamps are designed to anchor self-supporting LV-ABC lines 4 cores. The wedge type clamp is self-adjusting and it was made of high high mechanical and climatic resistant insulating material ensuring a good stress repartition on bundle without damaging insulation. Pilot wires or street lighting conductors are led alongside the clamp.Two hot dip galvanized steel tightening straps with associated bolts and nuits or pins.The clamp is spring loaded thus opening alone when screw untightened to easy conductor insertion.Single M12 bolt and self-blocking nut allows clamp also to be fixed to closed eye screws or brackets.It can be bolted to the pole with M16 eyebolts and bundle the cable with cable tie. |
|
|
