Ny Compression Tension Clamps For Acsr/as Conductors

Suspension&Tension Clamps
Overview:
if need any qualification or test report,please email to sales@graceeraelectric.com
Inquire Now →

Ny Compression Tension Clamps For Acsr/as Conductors

Inquire Now →
Description
Description

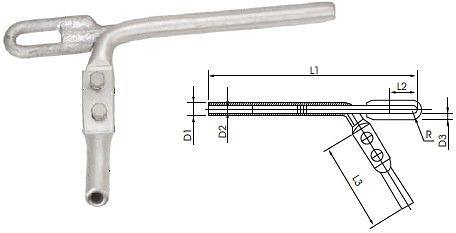

Full Tension deadend assembly for ACSR/AS conductors consists
of a aluminum deadend body pre-compressed onto steel unit,
a jumper terminal, mounting hardware and core gripping unit.
Material:
Body: Seamless extruded Aluminum Alloy tube
Eye: Galvanized forged steel
Terminal: Seamless extruded Aluminum Alloy tube
Hardware: steel，hot galvanized
