Features and advantages

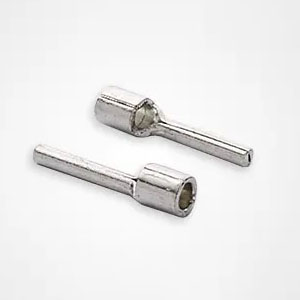

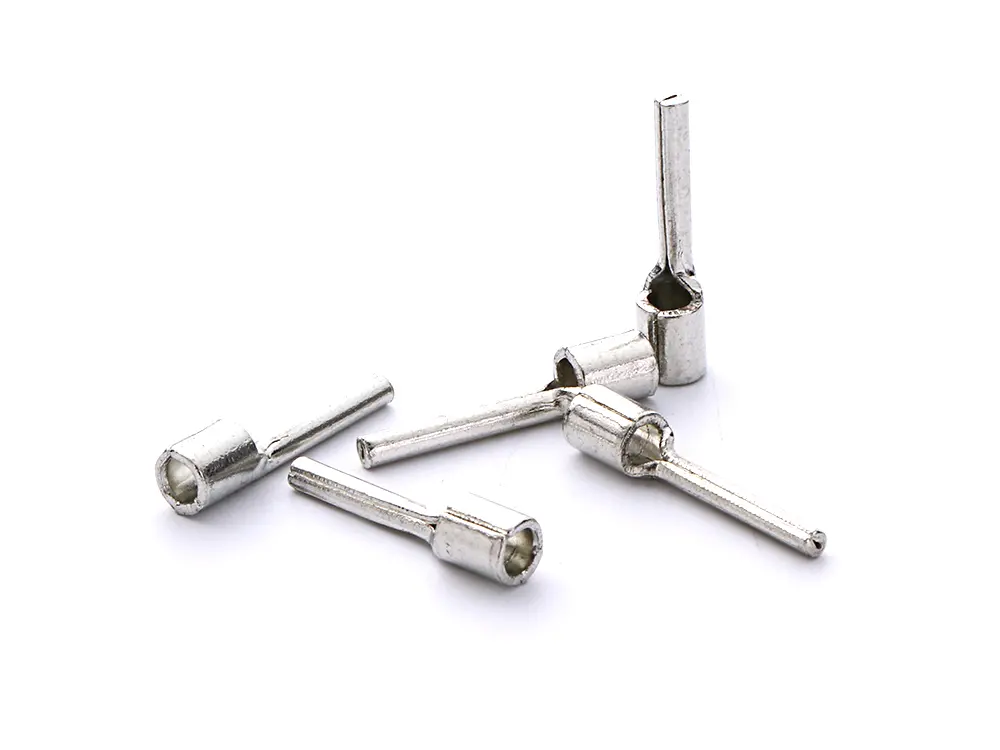

Terminal lugs are manufactured from electrolytic copper tube.
The most efficient electrical conductivity and mechanical strength to resist vibration and pull out.
Lugs are annealed to guarantee optimum ductility.
In applications subject to vibration, lugs still have to provide a reliable connection and annealing plays a vital role in avoiding cracking or breaks between the barrel and palm.
The presence of an inspection hole facilitates full insertion of the conductor, whilst the barrel length has been designed to allow easy and accurate positioning of the dies during the crimping operation. Lugs are electrolytically tinplated to avoid oxidation.
Product Data
Cross-section:
0.75-1.5mm² （22~16 AWG）
Available range | Item No. | Dimensions (mm) | ||
W | F | L | ||
Cross-section: 0.75-1.5mm² A.W.G.: 22~16 Imax=19A Surface handling: Tin / 3μ Annealing: Yes
H=4.8 d1=1.7 D=3.4 T=0.8 | PTN1.25-9 | 1.9 | 9.0 | 13.8 |
PTN1.25-10 | 10.0 | 14.8 | ||
PTN1.25-12 | 12.0 | 16.8 | ||
PTN1.25-13 | 13.0 | 17.8 | ||
PTN1.25-17 | 17.0 | 21.8 | ||
