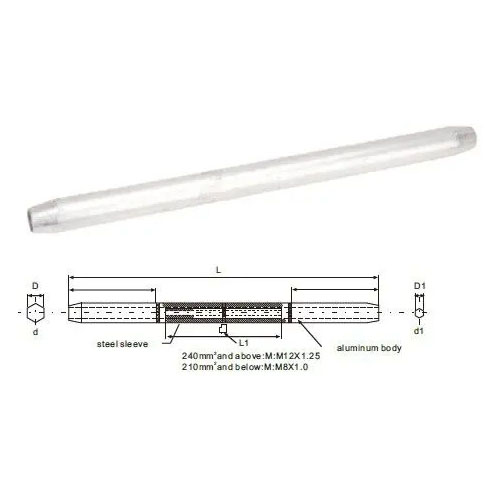

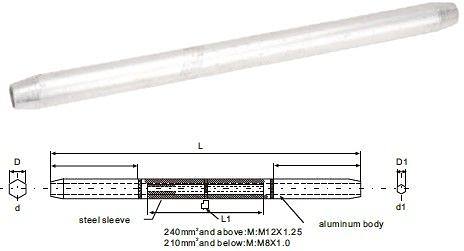

| Full Tension Compression Midspan Joints are manufactured from an Aluminum outer extrusion splice body, and an inner steel tubular core. The two piece design ensures strength equivalent to the conductor onto which the fitting is applied.Each fitting is manufactured with internal and external tapers, to eliminate stresses associated with compression, and reduce corona discharge. Material: Splice Body: Seamless Extruded Aluminum Alloy Tube Steel Sleeve: Plated Steel |
| |
| (1) TANHO splice assemblies are full-tension rated for conductors with standard strength steel cores. (2) Loop splice is minimum tension connector (no steel sleeve component required). (3) Al-sleeves filled with compound and sealed in plastic. | |
