Jbl Pg Connectors

Inquire Now
Description

Application

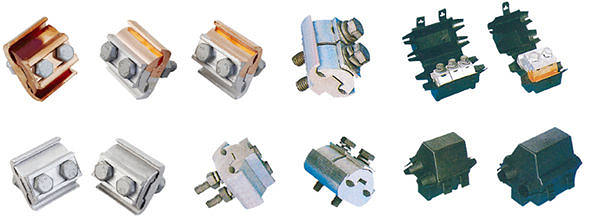

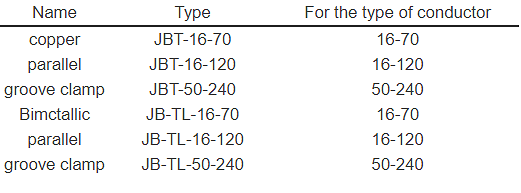

JBL, JBT, BJ-TL series specific forms parallel groove clamp is
suitable for unendure force splicing and branch on the aerial wire,
being used with insulation cover.
It's action is insulation protection.

Structure Feature
1. Select oxidize-resistance aluminium alloy.
2. Teeth-shape structure, touch with lowly resistance,
reliable splicing.
3. All pars connected with each other, it can't lose parts
during installation.
4. An arc embrace the most part, conductor can't change.

Insulation Cover Performance Teature
1. Withstand voltage: ≥ 18kV keep voltage one minute
not breakdown
2. Insulation resistance: >1.0×1014W
3. Weather proof performance: have good performanced
after 108 hours
artifical climate aging test.
4、Weather proof performance: have good performance
after 108 hours artificial climate aging test.

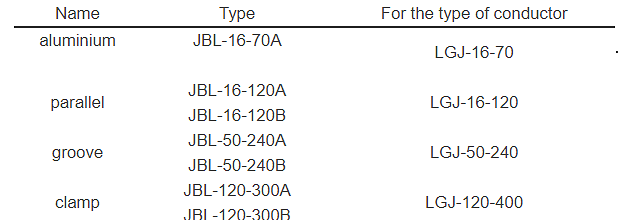

Note: A-two bolts, B-three bolts, All size have insulating cover.
