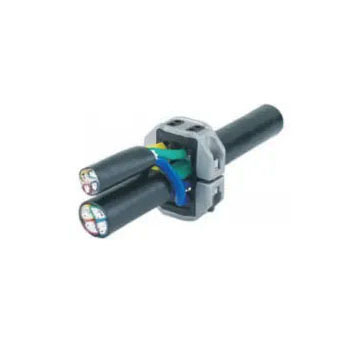

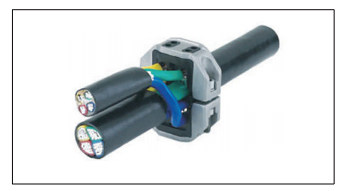

The cable ring type connector is specially designed for simple
           and reliable installation while ensuring maximum safety during
           life line work.
           The connectors are suitable for aluminum or copper,
           for stranded or solid conductors and cables with PVC or
           XLPE insulation.
           The compact design allows installation in reduced size resin filled
           boxes and in heat shrinkable joints.

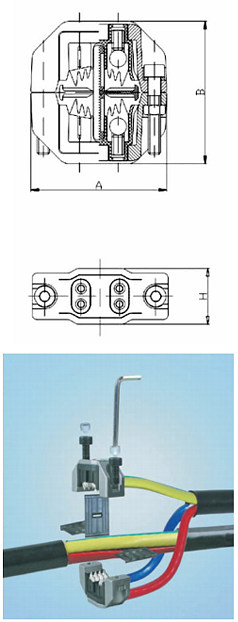

           Installation
           Cable over sheath is removed and the core separators placed
           between the cores. The two connector halves are positioned over
           the cores and the bolts are slightly tightened. Stripped ends of
           branch cores are inserted in the branch channels and the bolts are
           tightened. The connector halves are closed by tightening the two
           outer bolts while the contact segment pierces the main cable cores.
           The outer metal ring is at all times insulated from the life conductors.
           ·For 4 and for 3 1/2 core cables
           ·Contact segments with integrated depth limitation
           ·Branch channels with grooves
           ·No torque moment key required

           Materials
           Body: high strength aluminum alloy
           Contact segment: electro tinned brass
           Insulation parts: Glass fiber reinforced polymer
           Bolts: tinned steel
