Application
Inside&outside MV and LV terminations for Wide range
copper cables. Grounding.
Description

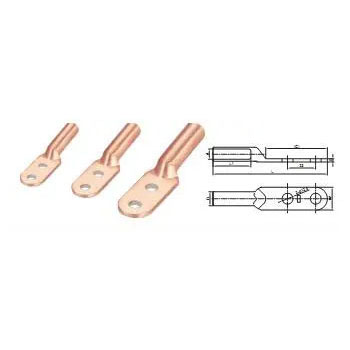

The lug is made of electrolutic copper and longitudinally sealed.
To be crimped bu hexagonal technic.
Specially made for high current
| Cat No | Diamesion mm | ||||||
| D | d | L | L1 | W | S | ( C ) | |
| DTS-16 DTS-25 DTS-35 DTS-50 DTS-70 DTS-95 DTS-120 DTS-150 DTS-185 DTS-240 DTS-300 DTS-400 DTS-500 | 10 11 12 14 16 18 20 22 25 27 31 34 38 | 6.1 7.1 8.5 9.8 11.5 13.5 15 17 18.6 21.5 24 27 30 | 95 100 110 115 125 130 140 150 165 175 190 210 225 | 30 33 36 38 43 46 49 51 55 60 68 78 82 | 20.5 20.5 23 23 28 28 34 34 40 40 50 55 55 | 2.5 2.7 3 3.4 3.8 4.2 4.7 5.5 5.8 6.5 8.0 9.0 10 | 54 55 58 60 64 65 67 70 80 88 90 100 105 |
