Features and advantages
For wires from 0.14 – 150 mm²
Tolerances according to DIN 46228 part 4.
Wire end sleeves are available from cross section 0.26 to 150 mm²(AWG 26 – 300 MCM).
Wide range from insulated ferrules for standard applications to special end sleeves according customers requirements.
All wire end sleeves are of a high quality and could be processed by automatic machines. Insulated wire end sleeves are available in colour codes DIN, French and Germany.
Product Data

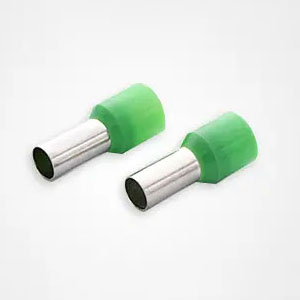

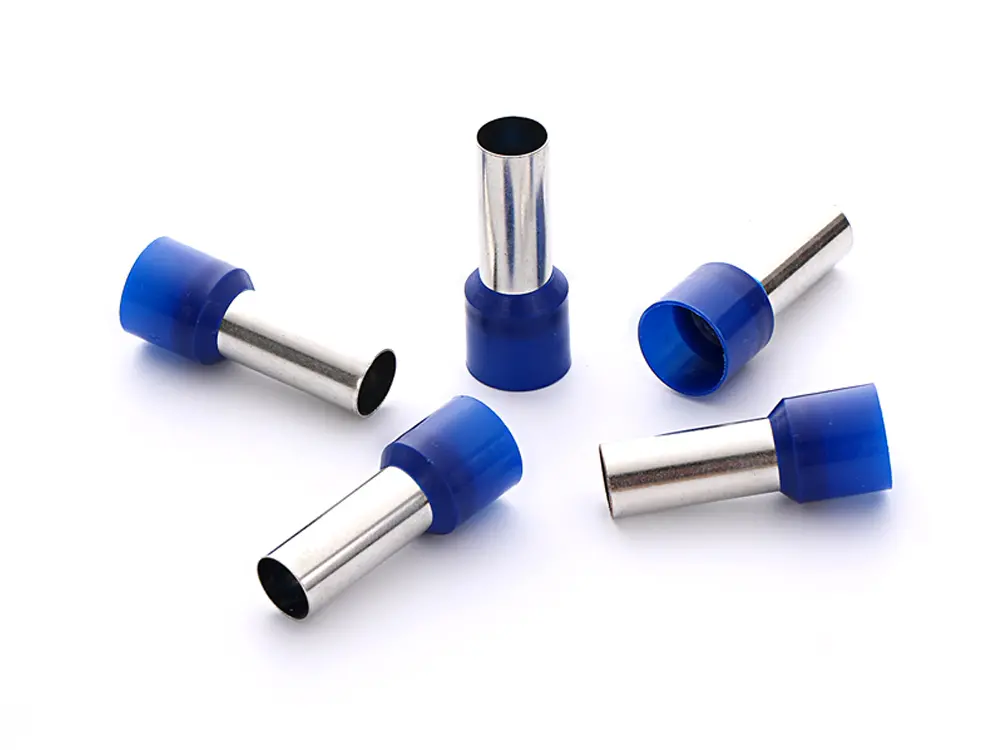

Cord end Ferrules
Cross section (mm²) |
Item No. | Dimensions (mm) |
French color |
German Color |
DIN Color | ||||||

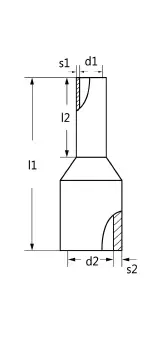

| l1 | l2 | s1 | s2 | d1 | d12 | A.W.G | |||||
0.34 | E0306 | 11 | 6 | 0.15 | 0.3 | 0.8 | 1.9 | #24 |
Pink |
Turquoise |
Turquoise |
| E0308 | 13 | 8 | |||||||||
0.5 | E0506 | 12 | 6 | 0.15 | 0.3 | 1.0 | 2.6 | #22 |
White |
Orange |
White |
| E0508 | 14 | 8 | |||||||||
| E0510 | 16 | 10 | |||||||||
| E0512 | 18 | 12 | |||||||||
0.75 | E7506 | 12 | 6 | 0.15 | 0.3 | 1.2 | 1.8 | #20 |
Blue |
White |
Grey |
| E7508 | 14 | 8 | |||||||||
| E7510 | 16 | 10 | |||||||||
| E7512 | 18 | 12 | |||||||||
1.0 | E1006 | 12 | 6 | 0.15 | 0.3 | 1.4 | 3.5 | #18 |
Red |
Yellow |
Red |
| E1008 | 14 | 8 | |||||||||
| E1010 | 16 | 10 | |||||||||
| E1012 | 18 | 12 | |||||||||
1.5 | E1508 | 14.5 | 8 | 0.15 | 0.3 | 1.7 | 3.5 | #16 |
Black |
Red |
Black |
| E1510 | 16.5 | 10 | |||||||||
| E1512 | 18.5 | 12 | |||||||||
| E1518 | 24.5 | 18 | |||||||||
2.5 | E2508 | 15.5 | 8 | 0.15 | 0.3 | 2.3 | 4.0 | #14 |
Grey |
Blue |
Blue |
| E2510 | 17.5 | 10 | |||||||||
| E2512 | 19.5 | 12 | |||||||||
| E2518 | 25.5 | 18 | |||||||||
4.0 | E4009 | 16.5 | 9 | 0.2 | 0.4 | 2.8 | 4.5 | #12 |
Orange |
Grey |
Grey |
| E4010 | 17.5 | 10 | |||||||||
| E4012 | 19.5 | 12 | |||||||||
| E4018 | 25.5 | 18 | |||||||||
6.0
| E6010 | 20 | 10 | 0.2 | 0.4 | 3.5 | 6.0 | #10 |
Green |
Black |
Yellow |
| E6012 | 22 | 12 | |||||||||
| E6018 | 28 | 18 | |||||||||
10.0 | E10-12 | 22 | 12 | 0.2 | 0.5 | 4.5 | 7.6 | #8 |
Brown |
Ivory |
Red |
| E10-18 | 28 | 18 | |||||||||
16.0 | E16-12 | 22 | 12 | 0.2 | 0.5 | 5.8 | 8.7 | #6 |
Ivory |
Green |
Blue |
| E16-18 | 28 | 18 | |||||||||
25.0 | E25-16 | 28 | 16 | 0.2 | 0.5 | 7.5 | 11.0 | #4 |
Black |
Brown |
Yellow |
| E25-18 | 30 | 18 | |||||||||
| E25-22 | 34 | 22 | |||||||||
35.0 | E35-16 | 30 | 16 | 0.2 | 0.5 | 8.3 | 12.5 | #2 |
Red |
Beige |
Red |
| E35-18 | 32 | 18 | |||||||||
| E35-25 | 39 | 25 | |||||||||
50.0 | E50-20 | 36 | 20 | 0.3 | 0.5 | 10.3 | 15 | #1 |
Blue |
Olive |
Blue |
| E50-25 | 41 | 25 | |||||||||
70.0 | E70-20 | 37 | 20 | 0.4 | 0.5 | 13.5 | 16 | 2/0 |
Yellow |
Yellow | Yellow |
| E70-27 | 42 | 27 | |||||||||
| 95.0 | E95-25 | 44 | 25 | 0.4 | 0.8 | 14.5 | 18 | 3/0 |
Red |
Red |
Red |
| 120 | E120-27 | 47.6 | 27 | 0.45 | 0.8 | 16.5 | 20.3 | 4/0 |
Blue |
Blue |
Blue |
| 150 | E150-32 | 53 | 32 | 0.5 | 1.0 | 19.6 | 23.4 | 250/300 |
Yellow |
Yellow |
Yellow |
