| The crimping tools is used for non-welding and standard electrical connection. The mould of the crimping month is made of SCM-40 hardest tool steel that has thecharacteristics of long life, accurate bore diameter and good crimping effect. | ||

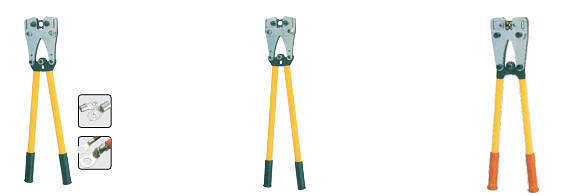

| For big Y.O non-insulated terminalsF | or big Y.O non-insulated terminals | For big Y.O non-insulated terminals |
| ||
| ||

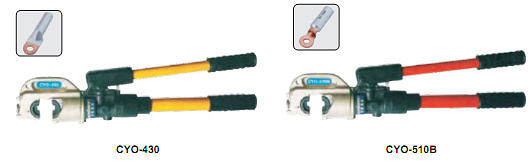

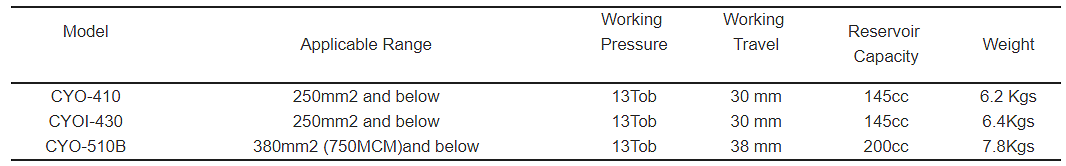

| CYO-410/CYO-430/CYO-510B | ||
| Design to accommodate hexagonal, circular shell and indent type dies for applying compression fittings to copper, aluminum and ACSR conductors.Two stage pumping action for rapid ram advance to the connector hold position with minimum pumping action. Automatic bypass when 700kg/cm2 of oil pressure is reached. The glass fiber operation insulates the stick, can bear the electric voltage 20 KV, keeping on the minute.180 degree rotatable head. The adjustable pressure valve outside the body dont need to tore down the whole structure.The packages are adopted entine nice and practical shaping Mould Plastic Case. |
| |
| ||
| ||
