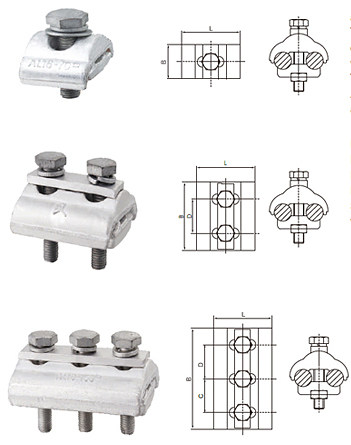

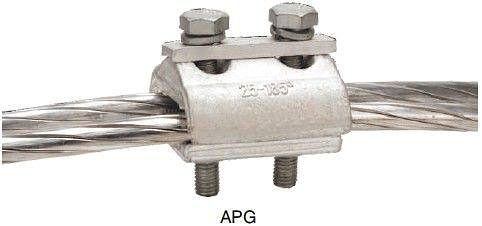

The forged aluminium clamps wasuse for aluminium to
aluminium connection throughout the conductor range.
The clamps have serrated transverse grooves for maximum
conductor contact, use dacromet steel bolts and utilise belleville
washers to prevent thermal ratcheting under cyclic loads.
The clamps are coated with an oxide inhibitor.
And hot-dip galvinized steel bolts and nuts was on requirment,
also we can change to stainless bolts and nuts with washers.

Material:
Body：High strength corrosion resistant aluminium
Bolts: DIN 933, steel, 8.8, Dacromatized
Nuts: DIN 934, steel, Dacromatized. pressed into lower clamp body
Spring:DIN 127, steel, Dacromatized
washers: Dacromatized.
