| 1.It is made of imported liquid silicon rubber(LSR),track resisitance reaches class 1A4.5; 2.Share the sane air with the cablemwhich sharply reduces the partial discharge and clearance discharge; 3.Double-earth-wire structure that is convenient for operationg inspection; 4.Non-magnetic permanent force spring,it could avild eddy current or floationg potential; 5.Seal pipe and stiffener at the end of straight insulating tube sharply improve the sealing and dempproof performances. Product feature | |

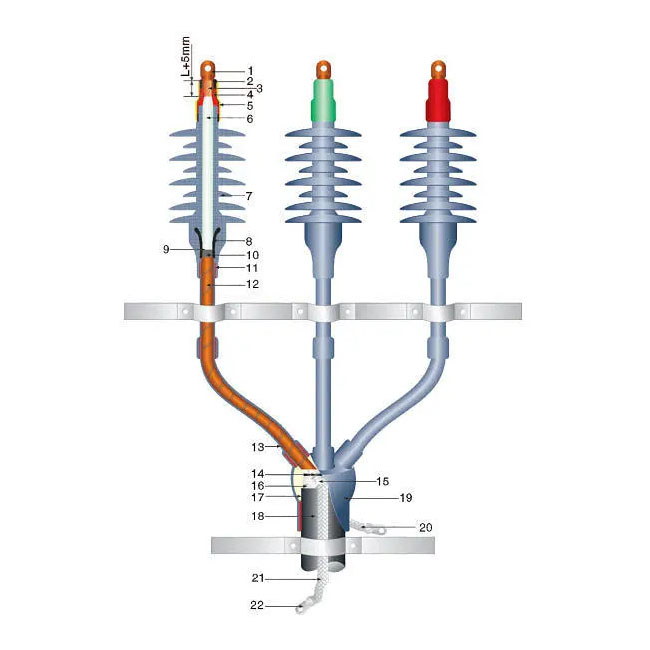

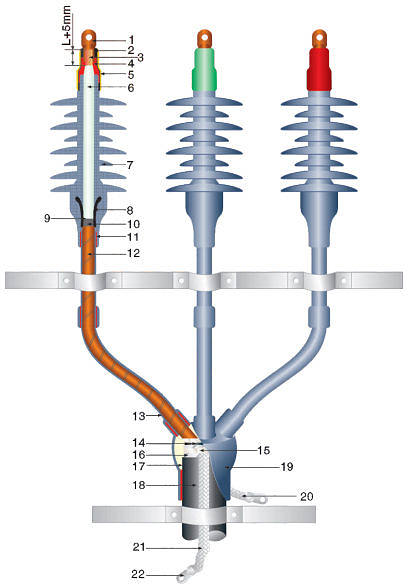

| 1.Connection terminal 2.J-20 self-adhesive tape 3.Wire core 4.Seal gum 5.Chromatography sealed tube 6.Terminal body 7.Main insulating layer 8.Stress cone 9.Semi-conductive tape 10.Semiconductor shielded layer 11.Seal gum 12.Copper shielded tape 13.Cold-shrinkable insulating tube 14.linling 15.Constant force spring 16.Steek armor 17.Filling adhesive 18.Cable outer sheath 19.Cold-shrinkable three-branch sheath 20.Shielded earthing wire 21.Armored earthing wire 22.Earthing terminal L:Hole depth of connection terminal |
|
